Industrial Automation Products

BECKHOFF • RKD2564300

EK1521
FIBER-OPTIC JUNCTION
ETHERCAT
SINGLE PORT
100 MBIT/S DATA TRANSFER RATE
350 MA
DIN RAIL MOUNT
-25 TO +60 DEGREE C
IP20

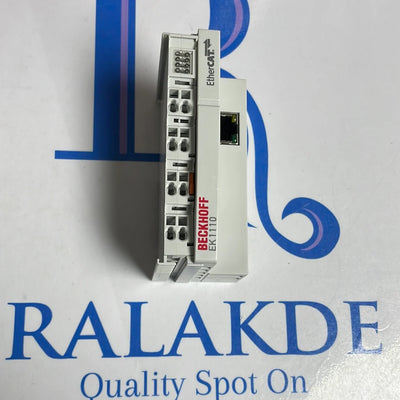

BECKHOFF • 31079 bx0032

EK1110
ETHERCAT EXTENSION
1 X RJ45 BUS INTERFACE
CONNECTION LENGTHS UP TO 100 M
130 MA
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD2564222

EK1101
ETHERCAT COUPLER
WITH ID SWITCH FOR E-BUS
100 MBIT/S DATA TRANSFER RATES
24 VDC
70 MA
2 X RJ45
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD2564196

EK1100-0018
ETHERCAT COUPLER
M8 CONNECTION
APPROX. 1 S DELAY
100 MBIT/S DATA TRANSFER RATE
24 VDC / 10 A MAX POWER CONTACTS
REQUIRES ETHERNET/ETHERCAT CABLE (MIN. CAT.5)
-25 / +60 DEGREE C
IP20

BECKHOFF • RKD2564172

EJ6002
ETHERCAT PLUG-IN MODULE
2-CHANNEL
SERIAL INTERFACE
300 TO 256
000 BAUD DATA TRANSFER RATES
128 BYTES TRANSMIT BUFFER
864 BYTES RECEIVE BUFFER
190 MA
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD2564116

DBL2H00060-0R2-000-S40
SERVO MOTOR
0.33 KW
400-480 VAC
1.4 AMP
0.6 NM
6000 U/MIN
IP64

BECKHOFF • RKD2564145

E242293
** INCORRECT PART NUMBER - DO NOT USE
THIS IS A UL LISTING NUMBER **

BECKHOFF • RKD2564082

CX9020-0110
DIN RAIL INDUSTRIAL PC- 1 GHZ ARM CORTEX-A8 PROCESSOR (TC3: 30)- FLASH MEMORY: 512 MB MICROSD CARD (EXCHANGEABLE
EXPANDABLE)- 1 GB DDR3-RAM (INTERNAL
NOT EXPANDABLE)- 2 X RJ45 ETHERNET CONNECTION 10/100 MBIT (INTERNAL SWITCH)- 4 X USB 2.0 INTERFACE- 1

BECKHOFF • RKD2564051

CX9010-0001
DISCONTINUED BY MANUFACTURER
BASIC CPU MODULE
4AMP
24VDC
6W
128KBYTES
32MB FLASH
128MB RAM

BECKHOFF • RKD2564019

CX9000-A001
EXTENSION MODULE FOR USAGE OF A MASS STORAGE COMPACT FLASH CARDREQUIRES CX9000 HARDWARE WITH LARGE MEMORY CPU!– CF CARD SLOT FOR CARDS TYPE I AND II– FRONT LED INDICATORS FOR: PWR (POWER)
LOCK (READ ONLY) AND CF ACCESS– FOR FIELD ASSEMBLY*– PROTECTION CL

BECKHOFF • RKD2563989

CX9000-0001
CPU MODULE
24 VDC SUPPLY
2 AMP
16MB FLASH
64MB RAM
ETHERNET RJ45/USB/DVI-D INTERFACE

BECKHOFF • RKD2563957

CX8180
DIN RAIL INDUSTRIAL PC
800 MHZ ARM CORTEX
A9 PROCESSOR (TC3: 20)
512 MB DDR3 RAM INTERNAL MEMORY (NOT EXPANDABLE) FLASH MEMORY: SLOT FOR MICROSD CARD
512 MB INCLUDED (EXPANDABLE)

BECKHOFF • RKD2563929

CX8093
EMBEDDED PC
WITH PROFINET DEVICE
2-PORT SWITCH
24 VDC POWER SUPPLY
4 AMP
400 MHZ ARM9 PROCESSOR
512 MB MICROSD FLASH MEMORY
64 MB DDR2 RAM MAIN MEMORY
2 X RJ45 INTERFACES
IP20

BECKHOFF • RKD2563899

CX5140-0162
DIN RAIL INDUSTRIAL PC- PROCESSOR INTEL ATOM®
E3845
1.91 GHZ
4 CORES (TC3: 50)- FLASH MEMORY: SLOT FOR CFAST CARD AND FOR MICROSD CARD (CARDS ARE NOT INCLUDED)- INTERNAL MAIN MEMORY: 4 GB DDR3 RAM (NOT EXPANDABLE)- 2 X RJ45 ETHERNET CONNECTOR 10/100/100

BECKHOFF • RKD2563871

CX5130-0155
INDUSTRIAL PC- PROCESSOR
INTEL ATOM E3827
1.75 GHZ
DIN RAIL
2 CORE
SLOT FOR CFAST CARD AND FOR MICROSD CARD (CARDS ARE NOT INCLUDED)-
INTERNAL MAIN MEMORY 4 GB DDR3 RAM (NOT EXPANDABLE)-
2 X RJ45 ETHERNET CONNECTOR 10/100/100

BECKHOFF • RKD2563845

CX5010-1111
INDUSTRIAL PC
INTEL ATOM PROCESSOR 1.1 GHZ
4 AMP
24 VDC
12 W
K-BUS INTERFACE FOR BUS TERMINALS
OPERATING SYSTEM: WINDOWS EMBEDDED CE 6
WITH TWIN CAT 2 PLC RUNTIME
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD2563819

CX5010-0121
CPU MODULE
BASIC
E-BUS
WINDOWS EMBEDDED STANDARD 2009
TWINCAT 2 PLC RUN-TIME

BECKHOFF • RKD2563792

CX2900-0502
SOLID-STATE DISK SSD
SATA
3D FLASH
2½
-INCH
120 GB

BECKHOFF • RKD2563769

CX2500-0061
INTERFACE MODULE
10/100/1000 MBIT/S
WITH POWER OVER ETHERNET
1 X ETHERNET
1 X RJ45
IP20
POWER SUPPLY: VIA SYSTEM BUS

BECKHOFF • RKD2563742

CX2500-0030
INTERFACE MODULE FOR 2 X RS232 CONNECTIONS
FULL 115 KBAUD ON BOTH CHANNELS
ELECTRICALLY ISOLATED INTERFACES (OPTICALLY ISOLATED)
EASY FIELD MODIFICATION POSSIBLE
BASED ON PCI EXPRESS
PROTECTION CLASS IP 20
OPERATING/STORAGE TEMPERATURE -25 °
C

BECKHOFF • RKD2563711

CX2043-N031-0001
RS485 INTERFACE
OPTIONAL INTERFACE FOR CX204
D-SUB SOCKET
9-PIN
CONFIGURATION AS AN END POINT
WITH ECHO
TERMINATION ON

BECKHOFF • RKD2563683

CX2043-0185
MODULAR DIN RAIL INDUSTRIAL PC- PROCESSOR AMD RYZEN™ V1807B 3.35 GHZ
4 CORES (TC3: 60)- FLASH MEMORY: SLOT FOR CFAST CARD (CARD NOT INCLUDED)- INTERNAL MAIN MEMORY: 8 GB DDR4 RAM (OPTIONALLY EXPANDABLE)- PERSISTENT MEMORY: 128 KB NOVRAM INTEGRATED- 2 X R

BECKHOFF • RKD2563624

CX2020-0155
INDUSTRIAL PC
MODULAR DIN RAIL
INTEL CELERON 827E 1.4 GHZ PROCESSOR
1 CORE (TC3: 50)- FLASH MEMORY: 40 GB CFAST FLASH CARD (OPTIONALLY EXTENDABLE)
INTERNAL MAIN MEMORY: 2 GB DDR3 RAM (OPTIONALLY 4 GB)
PERSISTENT MEMORY: 128 KB NOVRAM INTEGRATED
2 X

BECKHOFF • RKD2563655

CX2040-0155
BASIC CPU MODULE CX2040
MICROSOFT WINDOWS 10 IOT ENTERPRISE 2016 LTSB
64 BIT
TWINCAT 3 RUNTIME (XAR)
NO LICENSES INCLUDED
