Industrial Automation Products

BECKHOFF • RKD624134

ES3054
ETHERCAT TERMINAL
4-CHANNEL
ANALOG INPUT
4-20 MA SIGNAL CURRENT
12 BIT RESOLUTION
SINGLE-ENDED
-25 TO +60 DEGREES C
IP20

BECKHOFF • RKD624102

ES1202
ETHERCAT TERMINAL
2-CHANNEL
DIGITAL INPUT
4-WIRE
24 VDC
6 MA + LOAD
1 MS INPUT FILTER
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD624037

EP9224-0023
ETHERCAT BOX
4/4-CHANNEL POWER DISTRIBUTION
FOR ETHERCAT BOX MODULES
WITH CURRENT MEASUREMENT/DATA LOGGING
24 VDC
4 AMP
M8 SOCKET
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD624070

EPI1008-0001
IO-LINK BOX
8 DIGITAL INPUTS
24 V DC
FILTER 0 … 20MSI/O CONNECTION WITH CONNECTOR M8
SCREW-TYPE

BECKHOFF • RKD624007

EP9128-0021
ETHERCAT BOX
8-PORT JUNCTION
ETHERCAT
100 MBIT/S DATA TRANSFER RATES
24 VDC
M8 CONNECTION
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623976

EP6228-3032
ETHERCAT BOX
8-CHANNEL
COMMUNICATION INTERFACE
IO-LINK
MASTER
CLASS B
M12 CONNECTION
24 VDC
130 MA + LOAD
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623949

EP6224-0002
ETHERCAT BOX
4 CHANNEL
COMMUNICATION INTERFACE
DIGITAL INPUT
IO-LINK
MASTER
CLASS A
M12
24 VDC
100 MA
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623925

EP4314-1002
ETHERCAT BOX
2 CHANNEL ANALOG INPUT + 2 CHANNEL ANALOG OUTPUT
MULTI-FUNCTION
24 VDC
20 MA
16 BIT RESOLUTION
SINGLE-ENDED
M12
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623901

EP3744-0041
ETHERCAT BOX
INDUSTRIAL HOUSING
4-CHANNEL
ANALOG INPUT
8-CHANNEL
DIGITAL COMBI
24 VDC
0.5 AMP
10 MS INPUT FILTER
2 X M8 SOCKET
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623878

EP3356-0022
ETHERCAT BOX
1-CHANNEL
ANALOG INPUT
MEASURING BRIDGE
FULL BRIDGE
24 BIT RESOLUTION
M12 CONNECTIONS
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623850

EP2624-0002
ETHERCAT BOX
INDUSTRIAL HOUSING
4 CHANNEL RELAY OUTPUT
25 VAC / 30 VDC
0.5 AAC / 2 ADC
200 MA
POTENTIAL FREE MAKE CONTACTS
4 X M12
I/O CONNECTION WITH CONNECTOR: M12
SCREW-TYPE
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623819

EP2349-0021
ETHERCAT BOX
16-CHANNEL
DIGITAL COMBI
24 VDC
10
MS INPUT FILTER
0.5 AMP
M8 CONNECTION
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623753

EP2328-0001
ETHERCAT BOX
4 CHANNEL
DIGITAL INPUTS + DIGITAL OUTPUTS
24 VDC
3 MS INPUT FILTER
2 AMP
WITH M8 CONNECTOR
SCREW TYPE
-25 TO +60 DEGREES C
IP65/66/67

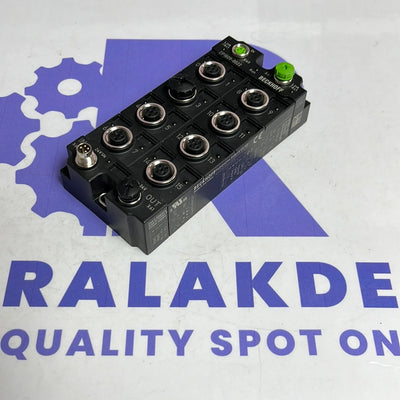

BECKHOFF • 17535 BX0007

EP1809-0022
ETHERCAT BOX
INDUSTRIAL HOUSING
16 CHANNEL DIGITAL INPUT
24 VDC
130 MA
3.0 MS INPUT FILTER
8 X M12
I/O CONNECTION WITH CONNECTOR:M12
SCREW-TYPE
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623687

EP1258-0002
ETHERCAT BOX
INDUSTRIAL HOUSING
8 CHANNEL DIGITAL INPUT
24 VDC
120 MA
10 MS INPUT FILTER
WITH 2 TIMESTAMPS
4 X M12
I/O CONNECTION WITH CONNECTOR: M12
SCREW-TYPE
-25 TO +60 DEGREES C
IP65/66/67

BECKHOFF • RKD623659

EM7004-0002
ETHERCAT TERMINAL MODULE
4-CHANNEL MOTION INTERFACE
AXIS/SERVO DRIVE
24
V
DC
1-WIRE CONNECTOR WITH LEDS
ETHERCAT MODULES
SPECIAL FUNCTIONS
E-BUS

BECKHOFF • RKD623609

EL9550
SYSTEM TERMINAL
24 V (-15/+20%)
SURGE FILTER SYSTEM
POLYCARBONATE MATERIAL
10 AMP POWER CONTACTS
-20 TO 60 DEGREE C
IP20

BECKHOFF • RKD623633

ELX3152
ETHERCAT TERMINAL
2 CHANNEL ANALOG INPUT TERMINAL
0/4...20MA
SINGLE ENDED
16 BIT
EX IWITHDRAWAL OF THE DEVICE IS JUST POSSIBLE IF THE SEAL AND THE PACKAGE ARE UNDAMAGED!

BECKHOFF • RKD623585

EL9187
POTENTIAL DISTRIBUTION TERMINAL
8 TERMINAL POINTS
0 VDC
10 AMP

BECKHOFF • RKD623554

EL7411-9014
ETHERCAT TERMINAL
1-CHANNEL
MOTION INTERFACE
BLDC MOTOR
48 VDC
4.5 AMP
WITH INCREMENTAL ENCODER
SUITABLE FOR STO APPLICATIONS
120 MA E-BUS
0 TO +55 DEGREES C
IP20

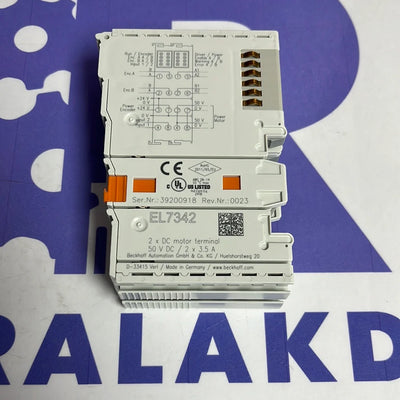

BECKHOFF • 17477 bx0032

EL7342
ETHERCAT TERMINAL
2 CHANNEL
MOTION INTERFACE
DC MOTOR
48 VDC
3.5 AMP
140 MA E-BUS
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD623490

EL7211
SERVOMOTOR ETHERCAT TERMINAL 8-48V DC
4 A EFF.
1 RESOLVER INPUT
1 DIGITAL OUTPUT FOR A MOTOR BRAKE 24 V DC

BECKHOFF • RKD623457

EL6851
ETHERCAT TERMINAL
1-CHANNEL COMMUNICATION INTERFACE
DMX
250 KBIT DATA TRANSFER RATES
130 MA E-BUS
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD623424

EL6731-1006
PROFIBUS MASTER TERMINAL WITH SOFTWARE VERSION 10
