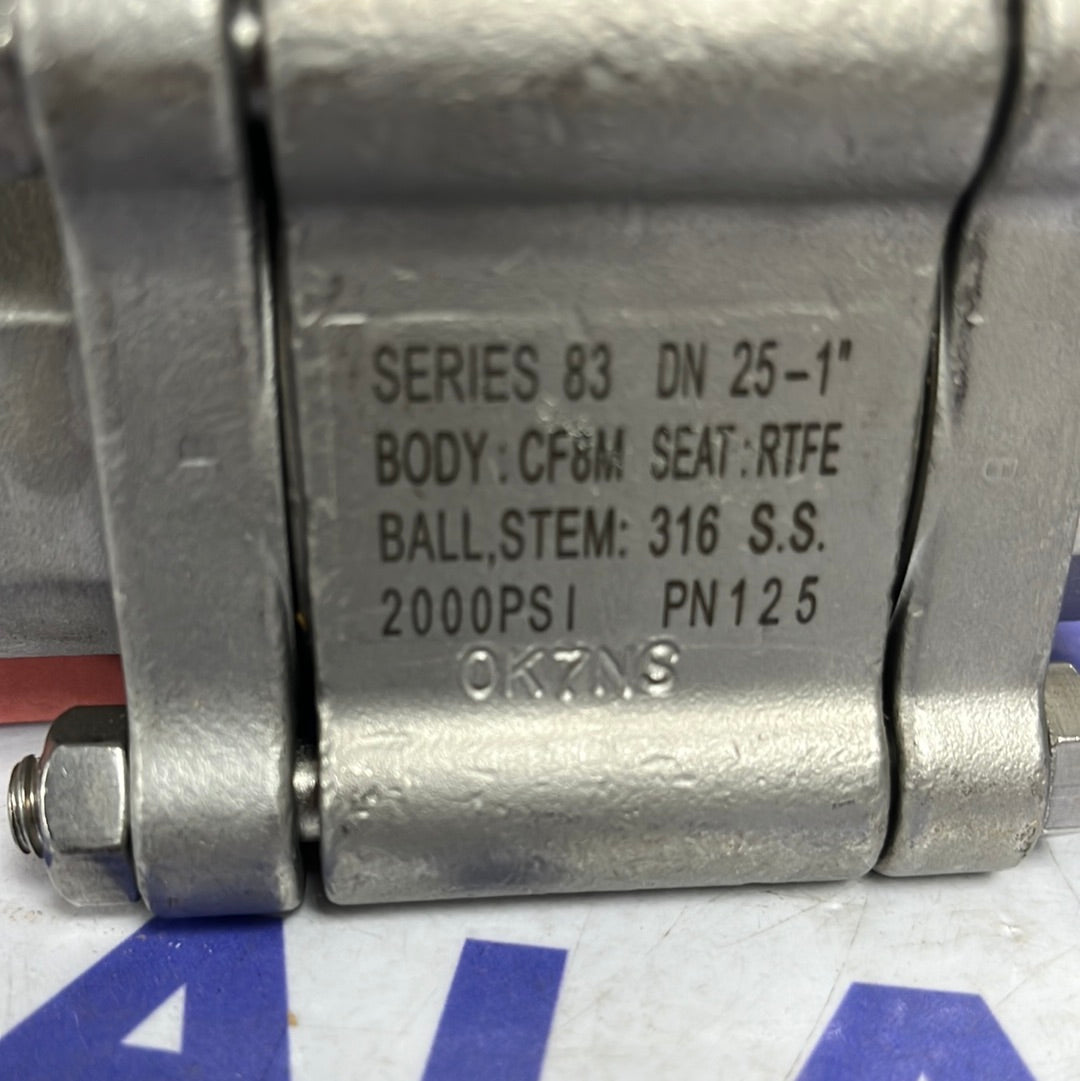

BODY CF8M SEAT : RTFE API 607 OL6MS

Class 800 (2000 WOG) Size Range ¼” thru 2” Full Bore
ISO 5211 Direct Mount Pad
Body Wall Thickness ASME B16.34
End Connections: NPT, SW, BW, RF, Special
Fugitive Emissions ISO 15848
Firesafe Tested API 607
Anti-Static Device and Live-Loaded Packing
Center Body Swing-Out Design
Blowout Proof, Low Torque Guided Stem Design
Wide Range of Soft and Metal Seated Options
Manual, Electric, Pneumatic Operators
Globally Certified and Approved

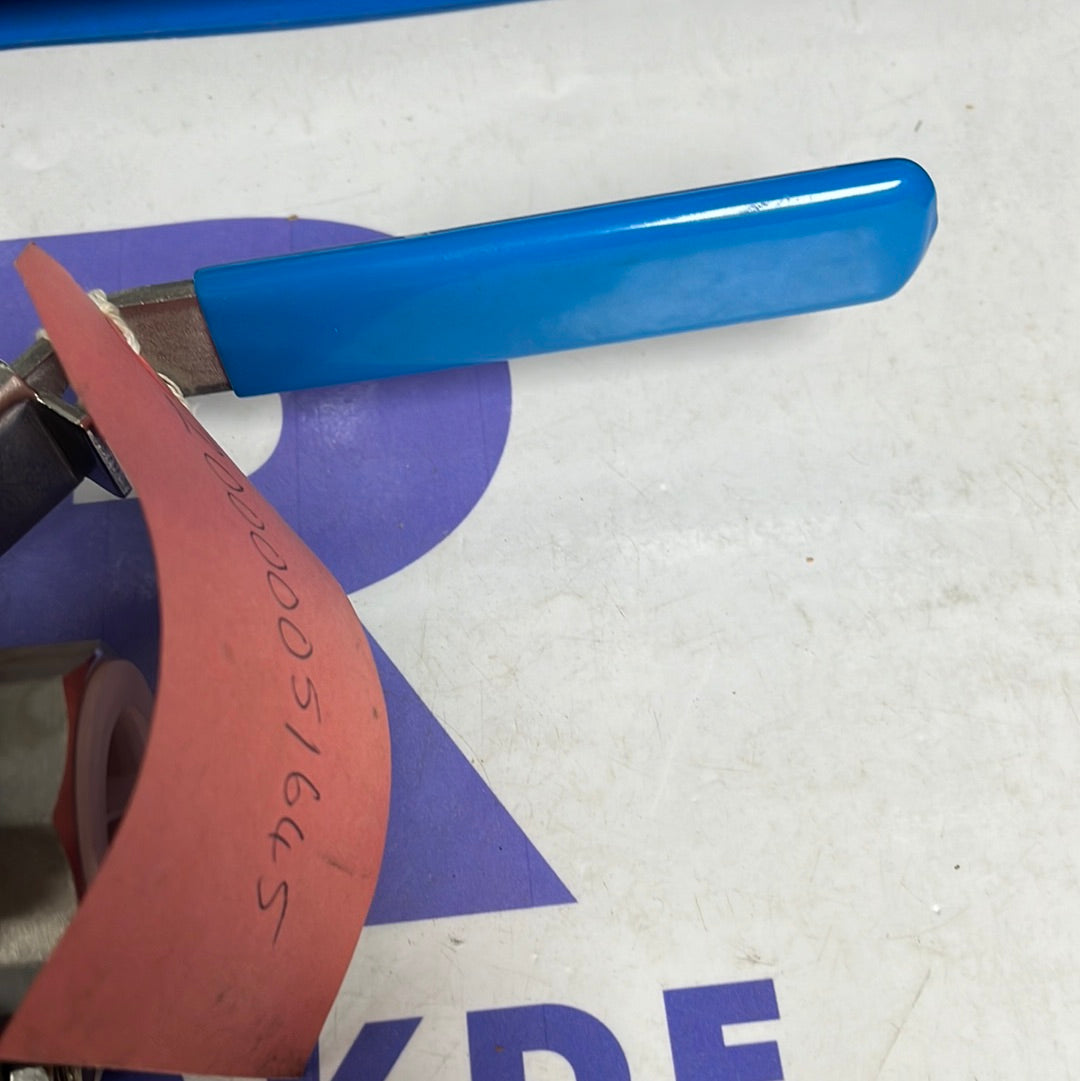

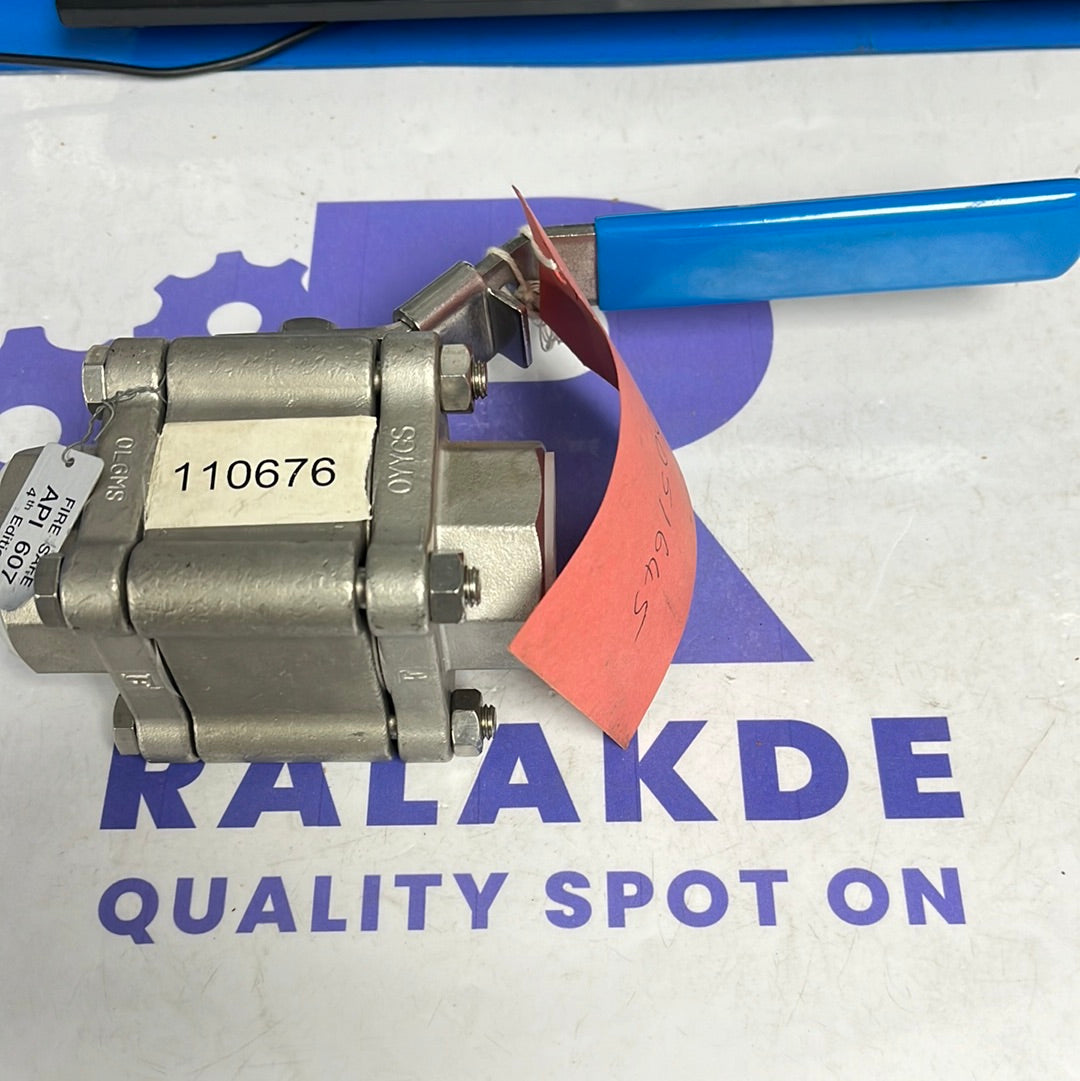

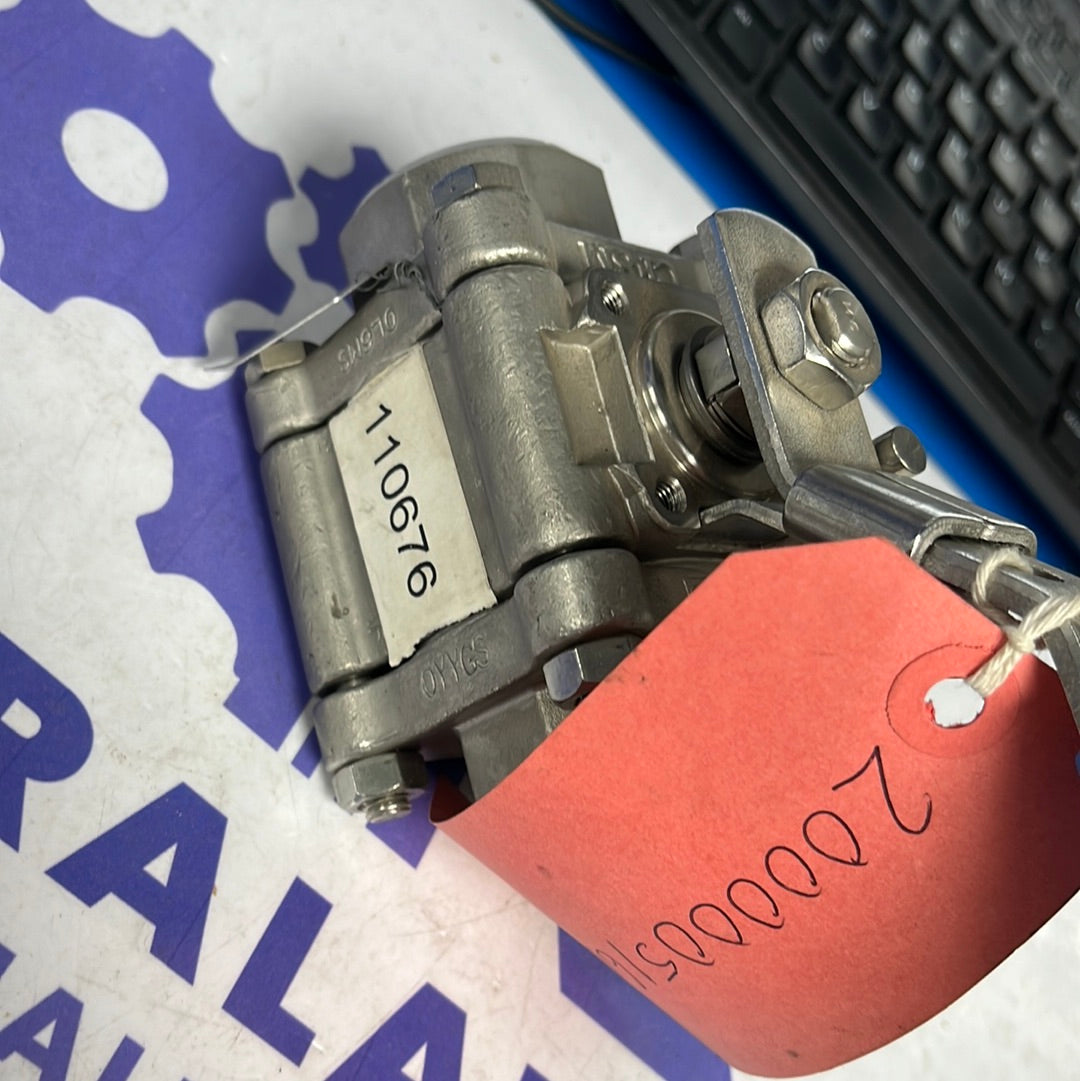

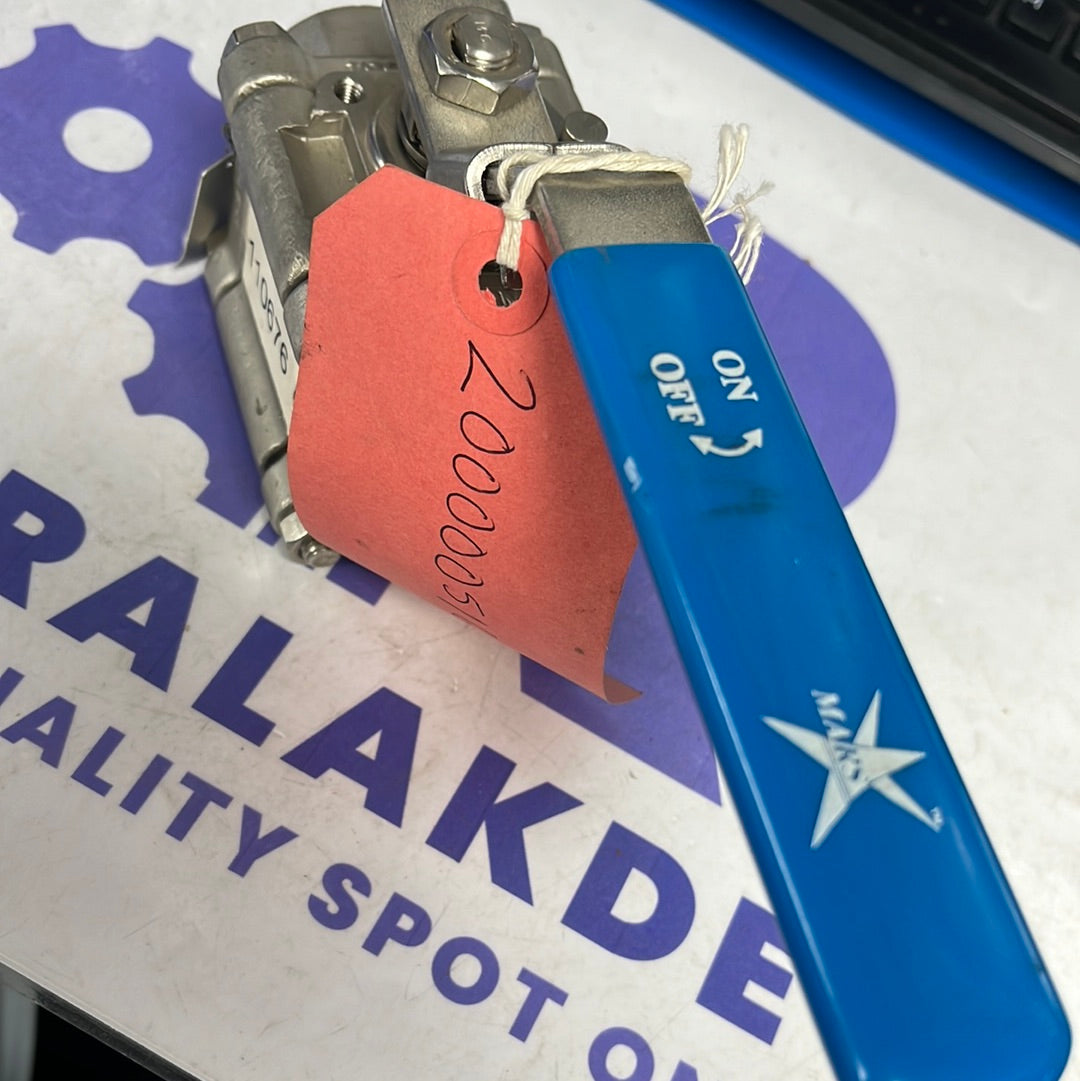

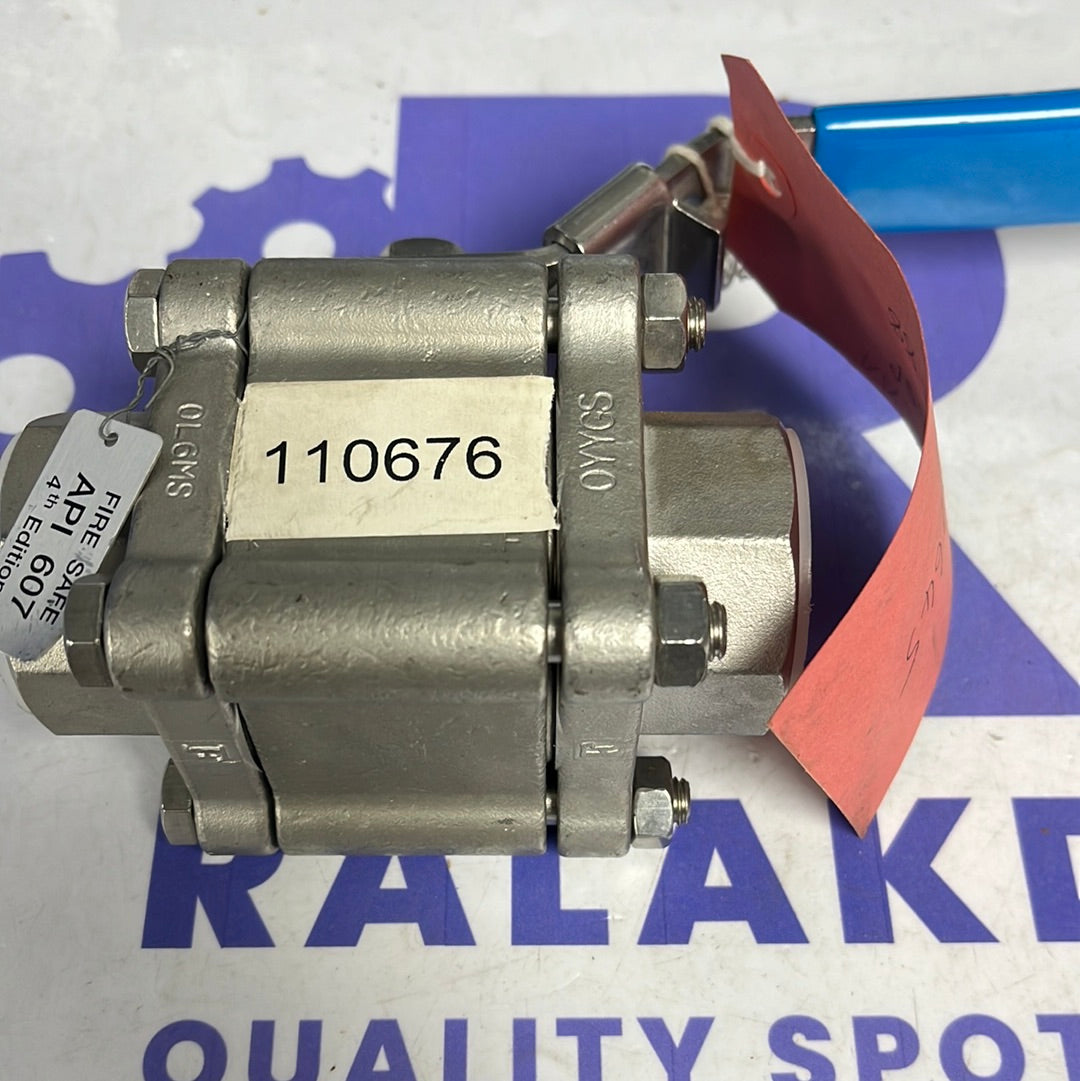

3 Piece SS Ball Valve API 607 Firesafe 1/2 Art 995 NPT 2000PSI
3 Piece Stainless Steel Fire Safe Ball Valve. Anti Static Device. Full Bore. PTFE Seals. ISO Direct Mount. Locking Device. TUV Certified to API STD 607. ATEX Approved.
NPT F/F Ends (ANSI B 1.20.1)
ATEX Approved.
TUV Certified to API STD 607.
Up to 140 Bar Rated
-25°C to +200°C.
